Rubber Track Size
260X55.5X78Y Rubber Track
260X55.5X78Y rubber track size page with fitment records, track photos, section drawing reference and nearby size support.
260X55.5X78Y260X55.5Rubber TrackRubber Tracks
Rubber Track Fitment
Rubber Track Fitment Size Database
Search by machine brand, model or rubber track size to find matching track specifications.
Quick Index
Size：260X55.5X78Y
Popular Brands
All Brands
A
B
C
D
E
F
G
H
M
MACELROY (1)MACMOTER (15)MADRO (2)MAEDA (1)MAIT (1)MANITOU (1)MASSEY FERGUSON (3)MAWECO (7)MAXIMA (5)MBU (3)MECALAC (7)MECBO (1)MECC. BENASSI (3)MENZI MUCK (3)MERLO (13)MERTZ (2)MESSERSI (36)MINICARRIER (6)MINICRUSHER (1)MINIDIG (2)MINIMUSTANG (1)MINITRACK (2)MIRA (1)MITSUBISHI (4)MORATH (1)MOROOKA (35)MORRISH (1)MULTIDRILL (1)MULTITEL (5)
N
P
R
S
T
0 matching records, page 1 / 1
1 pages total · Static local fitment index
No matching records. Try a brand, model or track size.
SEO Size Detail
260X55.5X78Y replacement rubber track reference
Track Width
260 mm
Pitch
55.5 mm
Links
78
260X55.5X78Y rubber track photos
Photos are matched by full width, pitch and link count. Nearby references are shown when the exact photo is not available.

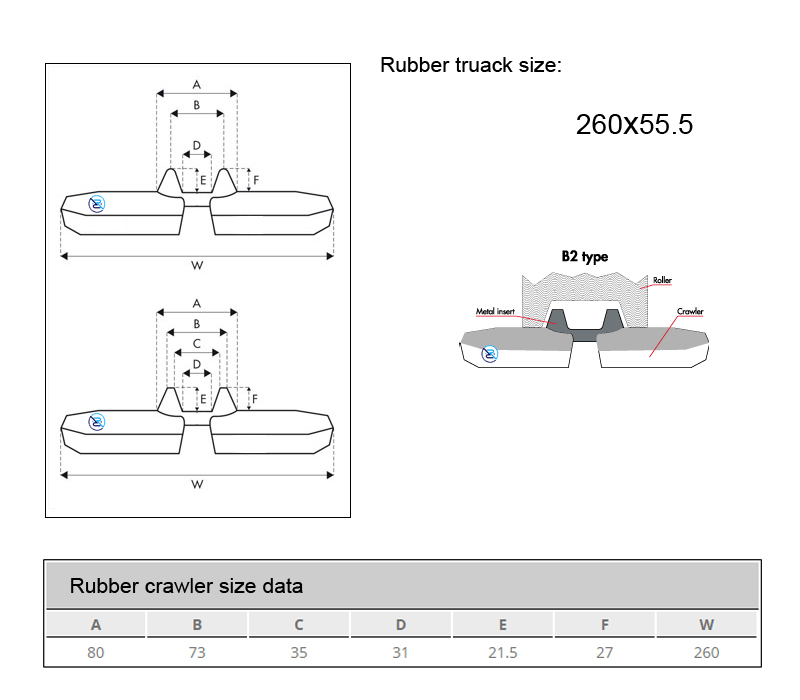

260X55.5 rubber track section drawing
Section drawings are matched by width and pitch because they do not include link count.
Matched Machine Fitments
Brand
YANMAR
Model
B25VA
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO 25.4
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO25
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO25.3
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO25PR
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO27.3
Original Size
260X55,5X78
Rollers
B2
Brand
YANMAR
Model
VIO27.5
Original Size
260X55,5X78
Rollers
B2
Technical Articles
Rubber Tracks
How to Read Rubber Track Size 180X60X30
A practical guide to reading 180X60X30 rubber track size markings, including width, pitch, link count, fitment checks and inquiry information.
Rubber Tracks
Rubber Track Pitch and Link Count Explained
Understand rubber track pitch, link count and width, and why section drawings match width and pitch while photos match the full size.
Rubber Tracks
Rubber Track Tension Guide
A practical rubber track tension guide covering over-tight, loose and uneven wear symptoms for excavators, carriers and agricultural machines.
Industry Applications
Rubber in Agricultural Machinery: Tracks, Seals & Vibration Systems
Comprehensive guide to rubber products in agricultural machinery: harvester tracks (NR/SBR formulation), planter seed tubes, sprayer seals (EPDM/NBR/CR), and tractor damping systems. Material selection for wide-temperature operation (-30 to +50 deg C) and fertilizer/pesticide chemical resistance.
FAQ
What does 260X55.5X78Y mean on a rubber track?
260X55.5X78Y uses 260 mm track width and 55.5 mm pitch with 78 links. Photos are matched by full size, while section drawings are matched by width and pitch.
Which machines use 260X55.5X78Y rubber tracks?
260X55.5X78Y uses 260 mm track width and 55.5 mm pitch with 78 links. Photos are matched by full size, while section drawings are matched by width and pitch.
Can 260X55.5X78Y rubber tracks be customized?
260X55.5X78Y uses 260 mm track width and 55.5 mm pitch with 78 links. Photos are matched by full size, while section drawings are matched by width and pitch.
Inquiry for 260X55.5X78Y Rubber Track
Send the machine brand, model, old track side marking, photos and quantity so the track pattern, core bar and delivery plan can be checked.
